Create a product listing

In this chapter you will learn how to

• Use the modular listing composables (useListingCore, useProductListingFilters, useProductListingPagination, useProductListingSorting)
• Search for products
• Display products in a listing
• Implement a pagination
• Apply sortings, pagination, and filters
• Use the helpers package

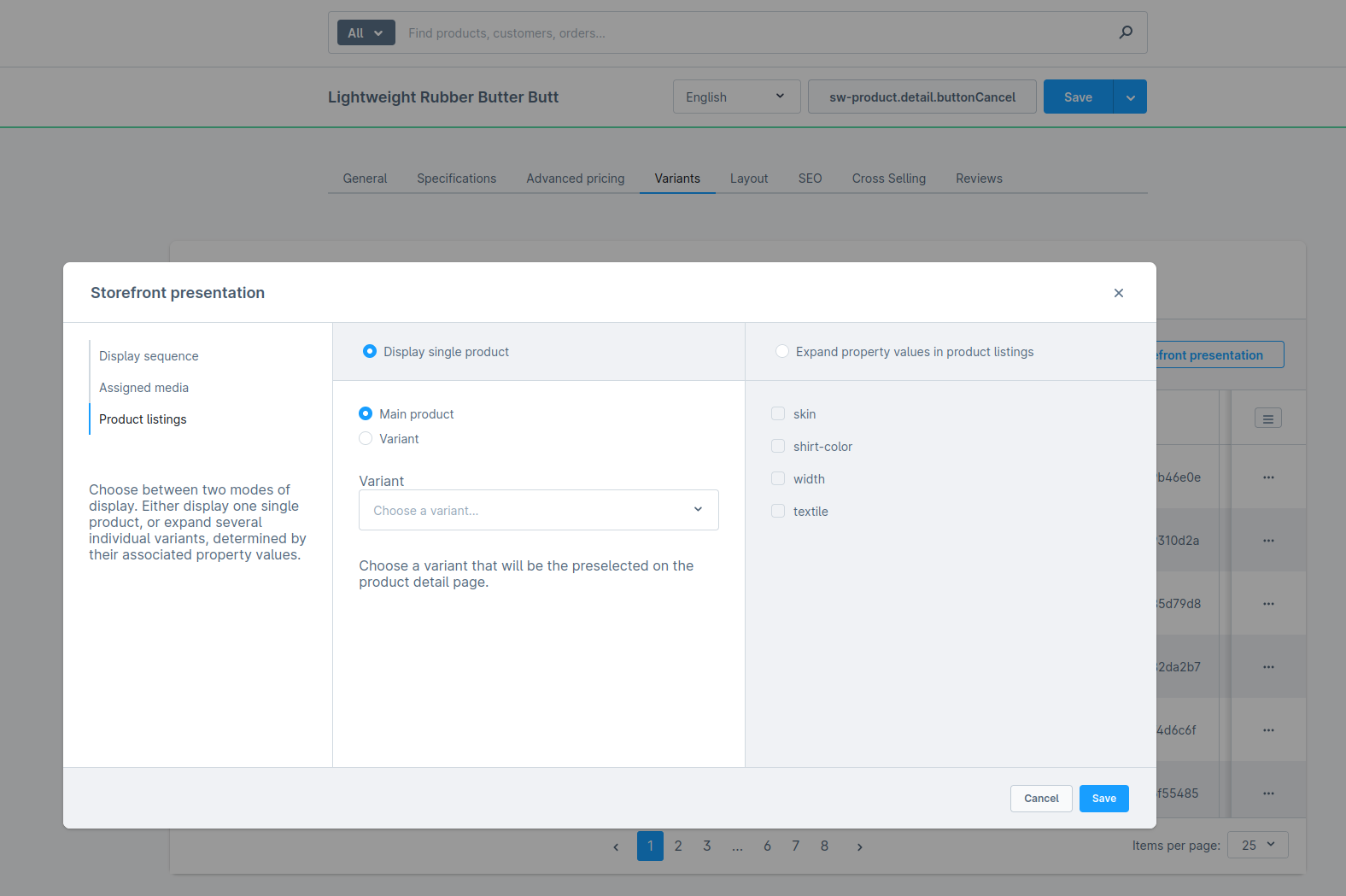

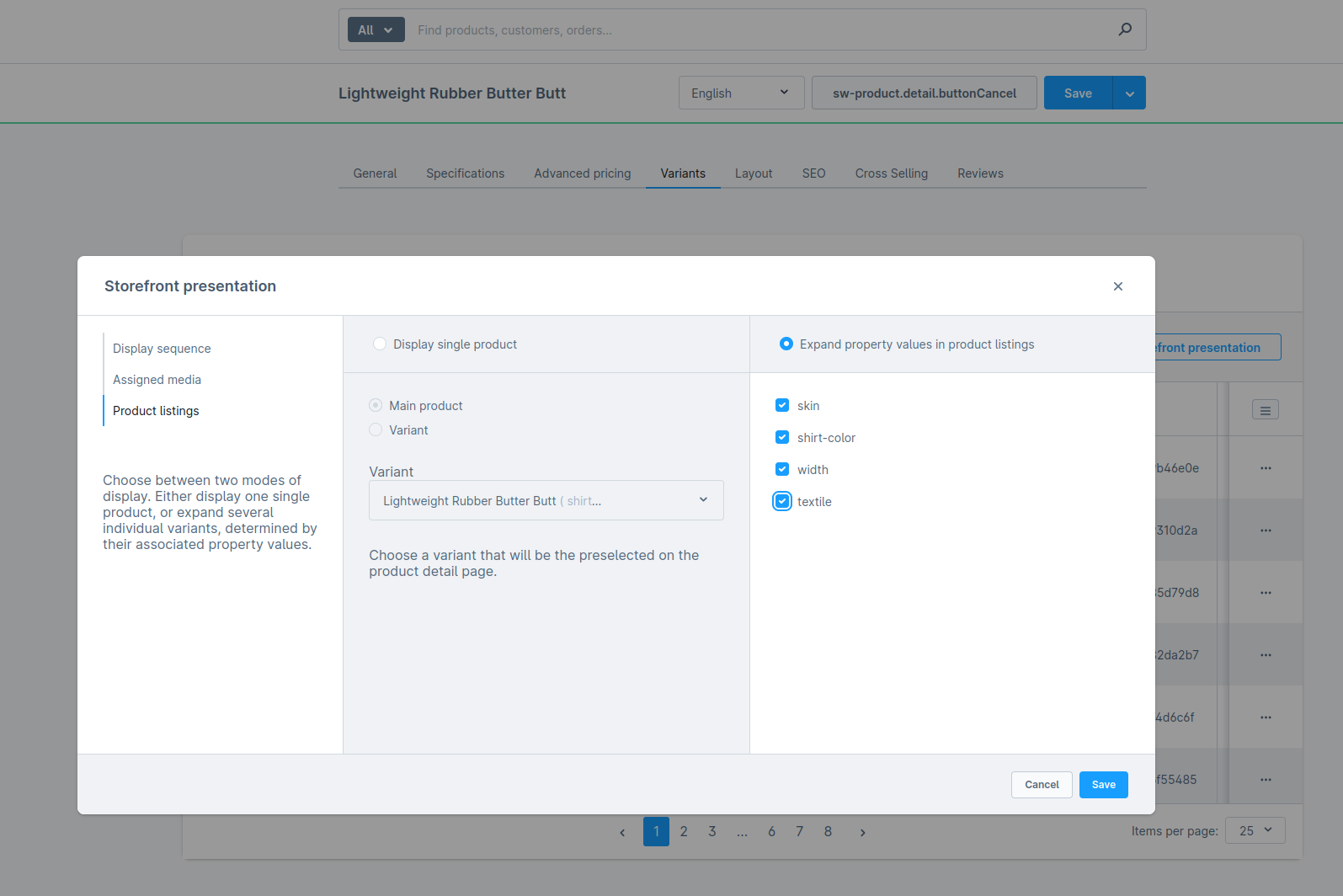

• Configure variants presentation for store API

Modular listing composables

The listing logic is split into focused, modular composables that can be used independently:

Composable	Responsibility
useListingCore	Core state, search, loadMore, initial listing
useProductListingFilters	Filter management (get, set, reset)
useProductListingPagination	Page navigation
useProductListingSorting	Sort order management

These composables work via Vue's provide/inject. A parent component sets up the listing context, and child components consume specific concerns.

Parent component — creates the listing context (e.g. CmsPage):

<script setup lang="ts">
import { createCategoryListingContext } from "@shopware/composables";

// Extract listing from CMS page data and provide context to children
const initialListing = getProductListingFromCmsPage(props.content);
if (initialListing) {
  createCategoryListingContext(initialListing);
}
</script>

Child component — uses the modular composables to access specific concerns:

<script setup lang="ts">
import {
  useListingCoreContext,
  useProductListingPagination,
} from "@shopware/composables";

// Inject core listing state from parent
const { getElements, loading, setInitialListing } = useListingCoreContext();
// Use focused composables for specific concerns
const { changeCurrentPage, getCurrentPage, getTotalPagesCount } =
  useProductListingPagination();
</script>

Search page — for product search, use the shared composable:

<script setup lang="ts">
import { useProductSearchListing } from "@shopware/composables";

const listing = useProductSearchListing();
</script>

Listing context

Product listing is a structure related to the predefined areas and it has always the same interface: ProductListingResult:

• Response of product-listing endpoint /store-api/product-listing/{id}
• Product search result
• Cms Page (via product-listing element, nested among other CMS element)

Listing type and context

Deprecated

useListing is deprecated. Use useListingCore with the modular composables (useProductListingFilters, useProductListingPagination, useProductListingSorting) instead.

Before using the composable, define the type related to the context:

• categoryListing for navigation/category/cms pages
• productSearchListing for search page

const { search, getElements } = useListing({
  listingType: "categoryListing",
  categoryId: "dfd52ab937f840fd87e9d24ebf6bd245",
});

The categoryId is obligatory only if the current page is not a result of using useCms composable (generated from Shopping Experiences).

INFO

If the useListing composable is used within a CMS Page, categoryId is resolved internally.

Define search criteria

In order to get the expected products, we need to define the search criteria. This criteria is an object of type Search Parameters explained in documentation of API.

const { search } = useListing();

search({
  limit: 2, // get only 2 products
  p: 1, // page 1
  includes: {
    // things we actually need in the response for learning purposes
    product: ["id", "name", "cover", "calculatedPrice"],
    product_media: ["media"],
    media: ["url"],
  },
});

TIP

Don't use includes parameter if you want to have the whole entity object available in the response.

Display listing elements

In order to display products of product listing we need to:

• Invoke the search() method with a positive result
• Iterate over getElements array of elements, where each element has the Product type.

<script setup lang="ts">
const { search, getElements } = useListing({
    listingType: "categoryListing",
    categoryId: "dfd52ab937f840fd87e9d24ebf6bd245", // entrypoint to browse
    defaultSearchCriteria: { // set the default criteria
        limit: 3,
        p: 1,
    },
});

search({ // invoke search() method
  includes: { // omit this parameter if you want to use the whole product entity
    product: ["id", "name", "cover", "calculatedPrice", "translated"],
    product_media: ["media"],
    media: ["url", "thumbnails"],
  },
});
</script>
<template>
 <div>
    <!-- iterate the getElements array -->
    <div v-for="product in getElements" :key="product.id">
        {{ product.name }}
        <!-- use other properties of type Product -->
    </div>
 </div>
</template>

Sorting

Available methods to manage sorting order:

• getSortingOrders - returns all available sorting options
• getCurrentSortingOrder - returns the current order, available in the response
• changeCurrentSortingOrder - sets the new order, invoking a search method internally

Using the modular composable (recommended):

// part of <script setup> section
import { useProductListingSorting } from "@shopware/composables";

// Injects listing context from parent component
const {
  getCurrentSortingOrder,
  getSortingOrders,
  changeCurrentSortingOrder,
} = useProductListingSorting();

Legacy approach (deprecated)

// part of <script setup> section
const {
  getCurrentSortingOrder,
  getSortingOrders,
  changeCurrentSortingOrder,
} = useListing({
  listingType: "categoryListing",
  categoryId: "dfd52ab937f840fd87e9d24ebf6bd245",
  defaultSearchCriteria: {
    limit: 3,
    p: 1,
  },
});

Show all available sortings:

<!-- part of <template> -->
<select>
  <option
    v-for="sortingOrder in getSortingOrders"
    :key="sortingOrder.key"
    :value="sortingOrder.key"
    :selected="sortingOrder.key === getCurrentSortingOrder"
  >
    {{ sortingOrder.label }}
  </option>
</select>

Refresh the product listing on option's change:

const onOrderChange = (onOrderChangeEvent: Event) => {
    // accept the DOM Event and extract the option's value
    // pass the value to the listing method that triggers the search() method internally
    changeCurrentSortingOrder(
        (onOrderChangeEvent.target as HTMLSelectElement).value
    );
};

Add event listener to the <select> element:

<select @change="onOrderChange"></select>

Enable adding to the cart

To achieve this, you can use useCart composable which expose addProduct method, including other useful functions to manage a cart.

// part of <script setup> section
const { addProduct } = useCart();

Utilize the method in a template:

<!-- part of <template> -->
<div>price: {{ product?.calculatedPrice?.unitPrice }} $</div>
<button @click="addProduct(product)">Add to cart</button>

Now, when the customer clicks the Add to cart button, a proper request is sent to the API. The cart is then refreshed and is up to date in the entire application.

TIP

Alternative tip - Instead of using useCart, you can use useAddToCart composable when you create a separate Vue component to keep a single Product for product listing. That option would enhance the code organization.

Add pagination

Pagination is available by using three methods:

• getCurrentPage
• changeCurrentPage - invokes search() method internally with the provided number of the page
• getTotalPagesCount - calculates the number of available pages depending on products per page parameters (i.e. limit in search criteria)

Using the modular composable (recommended):

// part of <script setup> section
import { useProductListingPagination } from "@shopware/composables";

// Injects listing context from parent component
const {
    getCurrentPage,
    changeCurrentPage,
    getTotalPagesCount,
} = useProductListingPagination();

Legacy approach (deprecated)

// part of <script setup> section
const {
    search,
    getElements,
    getCurrentPage,
    changeCurrentPage,
    getTotalPagesCount,
    getAvailableFilters
} = useListing({
    listingType: "categoryListing",
    categoryId: "dfd52ab937f840fd87e9d24ebf6bd245",
    defaultSearchCriteria: {
        limit: 3,
        p: 1,
    },
})

The implementation can look similar to:

<!-- part of <template> -->
<div>
  <div>Pages: {{ getTotalPagesCount }}</div>
  <button
    v-if="getCurrentPage > 1"
    @click="changeCurrentPage(getCurrentPage - 1)"
  >
    prev
  </button>
  <span> {{ getCurrentPage }} </span>
  <button
    v-if="getCurrentPage < getTotalPagesCount"
    @click="changeCurrentPage(getCurrentPage + 1)"
  >
    next
  </button>
</div>

Using Filters

Available Filters

For more information about filters available in the Store API scope, see Search Queries > Filter

Available filters are strictly related to the aggregation's object available in the API response.

Built-in aggregations:

• manufacturer
• price
• rating
• shipping-free
• properties (contain all property entities configured in the admin panel)

Get list of all available filters

The diagram explains the source of available filters. The API response contains aggregations that are parsed into one interface structure.

In order to get the list of available filters, use the following composable:

import { useProductListingFilters } from "@shopware/composables";

// Injects listing context from parent component
const { getAvailableFilters, getCurrentFilters, setCurrentFilters, resetFilters } =
  useProductListingFilters();

You can then iterate the filter objects available in the array. The filter object has a ListingFilter interface and depending on the code, or displayType, the handling process can be different. Let us have a closer look at it:

ListingFilter.code: manufacturer

<script setup lang="ts">
const { getAvailableFilters, getCurrentFilters, setCurrentFilters } = useProductListingFilters()

const selectManufacturerAndSearch = (manufacturerId: string) => {
  setCurrentFilters({
    code: "manufacturer",
    value: manufacturerId
  })
}

// element from getAvailableFilters.value
// i.e: getAvailableFilters.value?.find(({code}) => code === "manufacturer")?.[0]
const manufacturerFilter = {
  apiAlias:"manufacturer_aggregation",
  code:"manufacturer",
  label:"manufacturer",
  entities: [
      {
        "extensions": {
          "foreignKeys": {
            "apiAlias": "array_struct"
          }
        },
        "_uniqueIdentifier": "1d39db66fd184de8bdcfbf995197f8ea",
        "versionId": "0fa91ce3e96a4bc2be4bd9ce752c3425",
        "translated": {
          "name": "Boomers Gourmet",
          "description": "Description",
          "customFields": {}
        },
        "createdAt": "2020-08-06T06:26:30.608+00:00",
        "updatedAt": null,
        "mediaId": "ef102a5043174d8b936623b175c8af57",
        "name": "Boomers Gourmet",
        "link": "http://www.gewuerze-boomers.de/",
        "description": "Description",
        "media": null,
        "translations": null,
        "id": "1d39db66fd184de8bdcfbf995197f8ea",
        "customFields": null,
        "apiAlias": "product_manufacturer"
      },]
    { // other manufacturer objects
    }
  ]
}
</script>
<template>
<h3>{{ manufacturerFilter.label }}</h3>
  <div v-for="manufacturer in manufacturerFilter?.entities">
    <input
        type="checkbox"
        :id="`filter-mobile-${manufacturerFilter.code}-${manufacturer.id}`"
        :key="manufacturer.id"
        :name="manufacturerFilter.code"
        @click="selectManufacturerAndSearch(manufacturer.id)"
        :checked="getCurrentFilters['manufacturer']?.includes(manufacturer.id)"
      />
      <label :for="`filter-mobile-${manufacturerFilter.code}-${manufacturer.id}`">
        {{ manufacturer.name }}
      </label>
  </div>

</template>

• All available options for the Manufacturer filter are displayed in v-for loop. See entities property for the same.
• If the manufacturer.id is present in getCurrentFilters['manufacturer'] array, set the option as checked.
• On the click event, invoke setCurrentFilters({code, value}) method with code (manufacturer) and value (specific manufacturer ID) provided.

---

ListingFilter.code: properties

Properties is a generic type of filter responsible for displaying property entities that can describe a product that is configured on the backend side.

Despite being in the same filter group, every entity of property defined in the admin panel is available separately.

const ColorFilter: ListingFiler = {
  name: "Color",
  // other properties omitted
  options: [
    {
      id: "yellow-id",
      name: "Yellow",
      // other props omitted
    },
    {
      id: "green-id",
      name: "Gellow",
      // other props omitted
    },
  ],
};

Apply filter value

In order to apply a specific filter you need to be aware of:

• Filter code (see available codes at ListingFilterCode)
• Value

<script setup lang="ts">
const { setCurrentFilters } = useProductListingFilters();

setCurrentFilters({
  code: "properties",
  value: "some-property-id",
});

// or

setCurrentFilters({
  code: "rating",
  value: 5, // 5 stars rated products
});
</script>

Get list of applied (active) filters or its options

<script setup lang="ts">
const { getCurrentFilters } = useProductListingFilters();
</script>
<template>
  {{ getCurrentFilters.navigationId }}
  <!-- "category-A-ID-1" -->
  {{ getCurrentFilters.manufacturer }}
  <!-- ["manufacturer-A-option-ID-1"] -->
  {{ getCurrentFilters.price }}
  <!-- { min: 0, max: 299 } -->
  {{ getCurrentFilters.rating }}
  <!-- null -->
  {{ getCurrentFilters.["shipping-free"] }}
  <!-- false -->
  {{ getCurrentFilters.properties }}
  <!-- ["property-A-option-ID-1", "property-A-option-ID-2", "property-B-option-ID-1"]-->
</template>

You can achieve that by comparing stored value with displayed one.

Filter	Where to find?	Data structure
Manufacturer	getCurrentFilters.manufacturer	array[id: string]
Price	getCurrentFilters.price	{ min: number, max: number }
Rating	getCurrentFilters.rating	number
Shipping free	getCurrentFilters["shipping-free"]	boolean
Properties	getCurrentFilters.properties	array[id: string]

The selected/active filters for its options/values are flattened and limited only to the bare values.

INFO

Active filters for Properties contain only the list of ID's of properties' option. Therefore, they don't have any meta-info explaining what is the source of the option.

Helpers package

The purpose of @shopware/helpers is to make developer's life easier.

In the present case, we could use the product's thumbnail or use the translated name, or even get the product details page's URL, if the application supports a routing.

// part of <script setup> section
import {
  getSmallestThumbnailUrl,
  getProductUrl,
  getTranslatedProperty,
} from "@shopware/helpers";

<img
  :src="getSmallestThumbnailUrl(product)"
  width="100"
  height="100"
  :alt="product.name"
/>
<a :href="getProductUrl(product)">
  {{ getTranslatedProperty(product, "name") }}
</a>

Variants presentation

You have three different options for presenting your variants to your audience. These can be configured via the administration, for every product with variants. In this section, we explain how the output of the store API changes depending on the configuration. The default option is Expand property values in product listings without any property selection, this leads to a randomly selected variant.

To open the Product listing configuration for the Storefront presentation (also changes the output of the store API), proceed as follows in your administration:

Hover over Cataloges > Click on Products > Use the Search or Pagination to find your Product > Click on the Product with Variants you want to change > Click on the Tab Variants > Click on the Button Storefront presentation > A new window/modals opens > Click on Product lists on the left side > Here you can change the configuration of how the product with variants should be presented.

Additional ressources

More about Variants can be found in the Customer documentation. If you want to customise a product, please also check Custom products and do not use variants.

Display single product (main product)

Configuration is set to Display single product and Main product is selected.

Changes you will see in the store API output with that configuration:

• The store API returns one element
• The data comes from the Parent (main) product, e.g. stock, sales, product number and so on.
• If the association children is set, all the variant product data is returned in the children array
  • The childCount should be greater than zero, it should contain the number of all possible variants
• parentId and optionsIds will always be null

Too many children & big json files

It is good practice to return only the necessary data in your custom frontend. This means selecting only the required children and monitoring the JSON file size. Large files can slow down performance as they need to be downloaded and parsed.

Display single product (Variant)

Configuration is set to Display single product and a Variant product is selected.

Changes you will see in the store API output with that configuration:

• The store API returns one element
• The data comes from the selected Product variant, e.g. stock, sales, product number and so on.
• If you add the association children, an empty array is always returned, as a variant cannot be a parent product
• The childCount should be zero, as a variant cannot be a parent product
• parentId will contain the id of the parent product and optionsIds will contain the options from that variant product

Use case example

You always want to display the cheapest product on the product list as preselected. So that the customer can add it to the shopping cart more quickly.

Expand property values in product listings

Changes you will see in the store API output with that configuration:

• The store API returns multiple elements for each selected property, but not the parent product
• Data will be collected from the matching Variant products e.g. stock, sales, productNumber and so on.
• If you add the association children, an empty array is always returned, as a variant cannot be a parent product
• The childCount should be zero, as a variant cannot be a parent product
• parentId will contain the id of the parent product and optionsIds will contain the options from that matching variant product

Use case example

You could expand a property like color to display all the different images of a T-shirt directly in the product listing. The size selection can still be made on the product detail page so as not to overload the product list.
